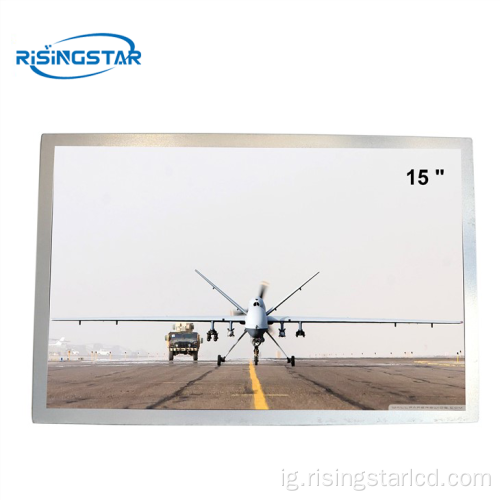

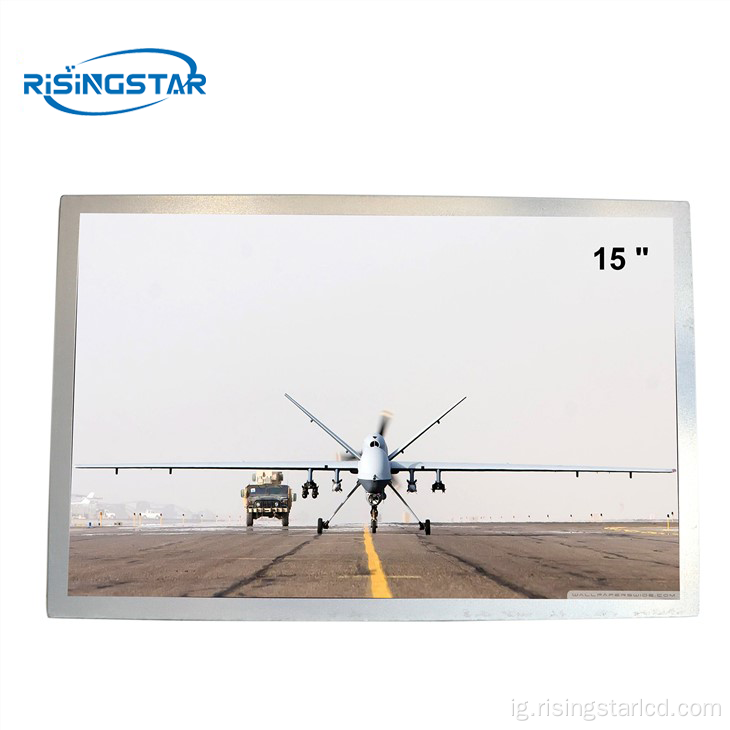

Ihe Nlereanya.: G150XNE-L01
15.0 "Innssux G150xne-L01 na-enwu gbaa 500nits anwụ na-acha uhie uhie nke TFT LCD na-agụ.
A na-achịkwa ụdị ụcha ihu ọma na-acha odo odo na-ere ma weghachi ya na otu ụdị mara mma na-enwu.
| brand | Innolux | Model name | G150XNE-L01 |
| size | 15.0 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1024(RGB)×768 XGA 85PPI | Pixel configuration | RGB vertical bar |
| Display size | 304.128(H)×228.096(V) mm | Surface treatment | Fog surface, Hard coating (3H) |
| Open zone | 307.4(H)×231.3(V) mm | Contrast Ratio | 2500:1 (Typ.) [transmission] |
| Brightness(cd/m²) | 500 cd/m² (Min.) or customized | Outline dimension | 326.5(H)×253.5(V) ×9.6(D) mm |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | ||
| Signal interface | 20 pins LVDS (1 ch, 6/8-bit) ,terminal | ||
| work environment | Storage temperature: -40 ~ 85 °C Working temperature: -30 ~ 80 °C |
Mkpado na-ekpo ọkụ: 15.0 "Innolux G150" TFOLNE-LCD LCD modulu, na-egosipụta, na windo na-egosiputa, windo na-eche ihu, windo dị elu, akara ngosi dị elu, na-enwu enwu na ihuenyo akara, Ultra Ihuenyo LCD, 3000 nits LCD
13.3 "Innolux G133ige-L03 TTT LCD modul
10.4 "innolux g104x1-l04 Tft LCD modul
